Joshi

Modular Prosthetic Limb System

A Leg To Stand On’s Joshi (pronounced Joe-she) is a thoughtfully designed, aluminum modular prosthetic lower limb system. Named in honor of our pioneer prosthetist Dhiren Joshi, the Joshi provides more affordable and sustainable prosthetic solutions - thereby increasing the accessibility, quality, and modernization of prosthetic limbs in low and middle income countries.

Featuring a sleek and minimal design with a smooth aesthetic, the Joshi utilizes lightweight aluminum technology. It serves as a mobility aid our CoolKids are proud to use, improving self-esteem, combating social stigma, and offering them the opportunity to pursue their dreams.

ISO 9001: 2015 and ISO 13485: 2016/NS-EN ISO 13485: 2016 Certified // CE Pending

Joshi components and third-party accessories are only available with ALTSO partnership.

#2283a2 - 4.png

Standard Components

#152329 - 1.png

1301.60ASJ
SACH Foot Adapter
aluminum base, integrated with stainless steel pyramid
L 60 MM x W 38 MM x H 25 MM
product weight: 122 g
weight limit: 100 Kg
includes: mounting bolt

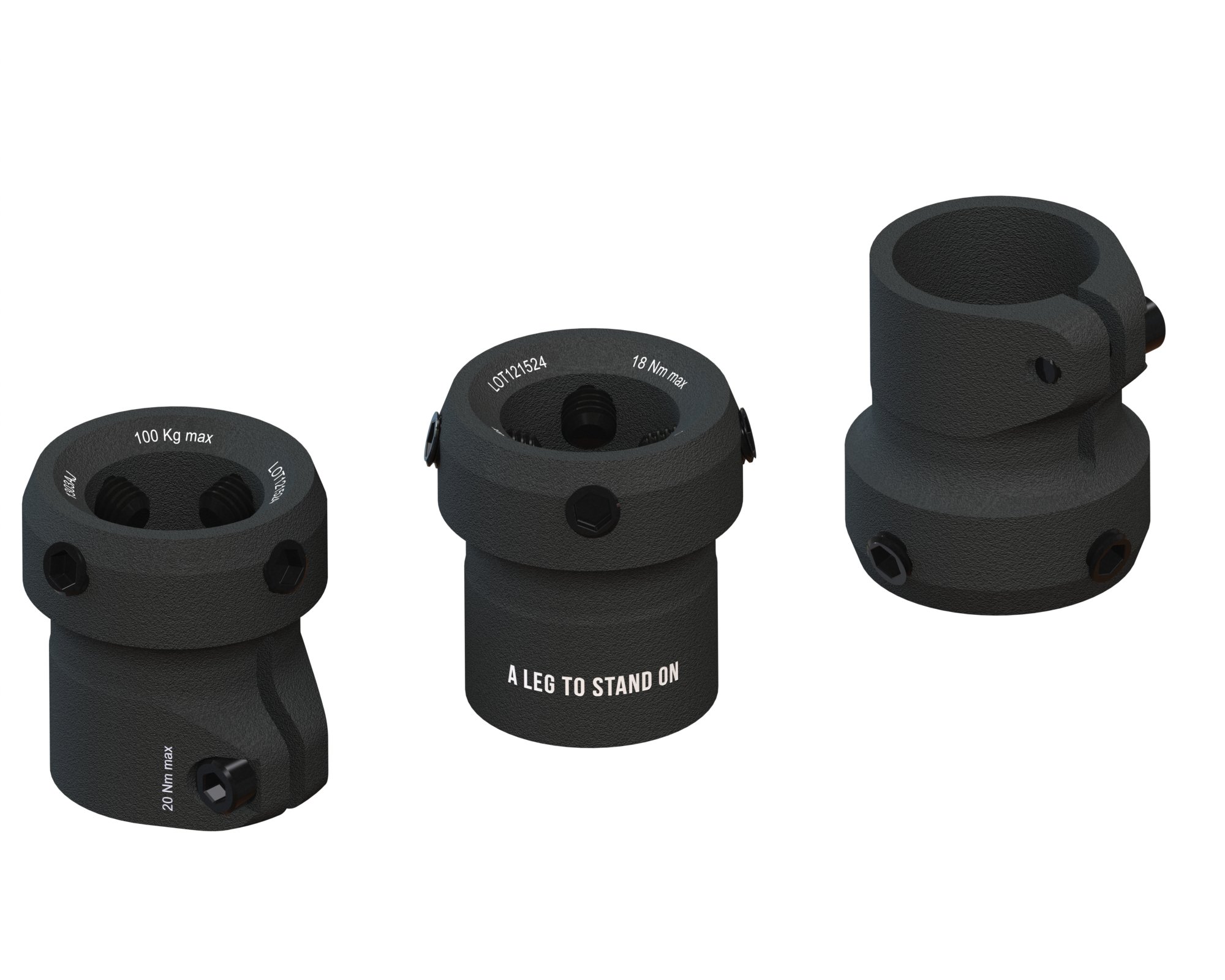

1303AJ
Tube Clamp Adapter with Receiver
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 48 MM
product weight: 92 g
weight limit: 100 Kg
includes: set screws, clamp screw

1310ASJ
Four Hole Square Base Static Pyramid Adapter
aluminum base, integrated with stainless steel pyramid
L 54 MM x W 54 MM x H 25 MM
product weight: 83 g
weight limit: 100 Kg

1317AJ
Four Hole Square Base Static Receiver Adapter
aluminum
L 52 MM x W 52 MM x H 20 MM
product weight: 68 g
weight limit: 100 Kg
includes: set screws



1318PSJ
Shuttle Lock PSJ
plastic
Ø 68 MM x H 28 MM
product weight: 150 g
weight limit: 100 Kg
includes: pin, mounting screws

1320.35AJ
Double Receiver Ended Adapter
-35 MM
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 35 MM
product weight: 107 g
weight limit: 100 Kg
includes: set screws

1320.45AJ
Double Receiver Ended Adapter
- 45 MM
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 45 MM
product weight: 117 g
weight limit: 100 Kg
includes: set screws

1320.60AJ
Double Receiver Ended Adapter
- 60 MM
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 60 MM
product weight: 144 g
weight limit: 100 Kg
includes: set screws



1320.75AJ
Double Receiver Ended Adapter
- 75 MM
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 75 MM
product weight: 162 g
weight limit: 100 Kg
includes: set screws

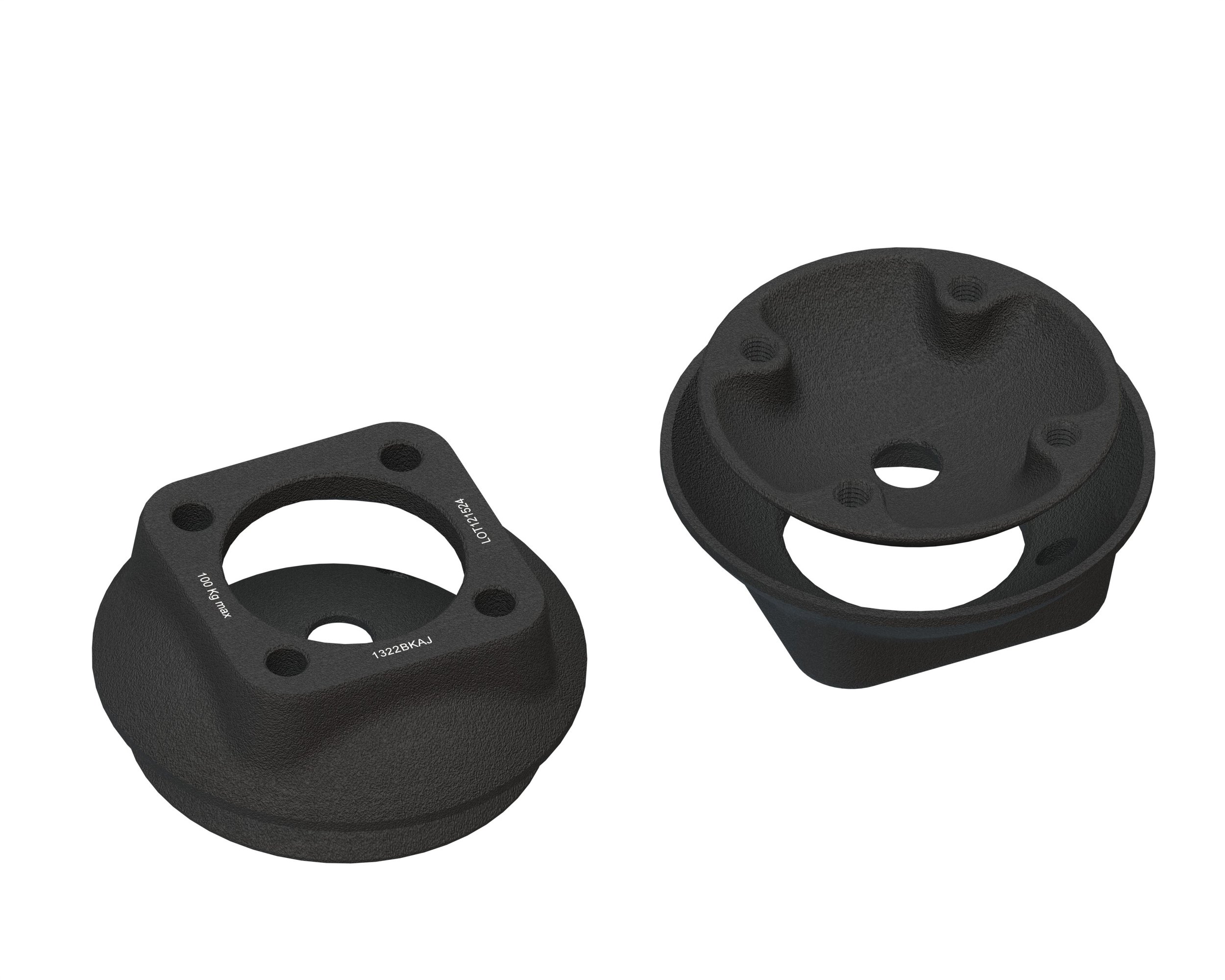

1322BKAJ
Four Hole Dish-shaped BK Socket Base (Below-Knee)
aluminum
Ø 78 MM x H 22 MM
product weight: 128 g
weight limit: 100 Kg
includes: mounting screws

1322AKAJ
Four Hole Dish-shaped AK Socket Base (Above-Knee)
aluminum
Ø 90 MM x H 22 MM
product weight: 146 g
weight limit: 100 Kg
includes: mounting screws

1329ASJ
Four Hole Square Base Single Offset Adapter with Pyramid
aluminum base, integrated with stainless steel pyramid
L 52 MM x W 52 MM x H 25 MM
product weight: 81 g
weight limit: 100 Kg



1331AJ
Height Adjustable Tube Clamp Adapter with Receiver
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 75 MM
product weight: 118 g
weight limit: 100 Kg
includes: set screws, clamps screws

1332ASJ
Four Hole Square Base Double Offset Adapter with Pyramid
aluminum base, integrated with stainless steel pyramid
L 52 MM x W 52 MM x H 25 MM
product weight: 81 g
weight limit: 100 Kg

1654ASJ
4-Bar Polycentric Knee Joint
aluminum base, integrated with stainless steel pyramid
L 52 MM x W 52 MM x H 125 MM
product weight: 620 g
weight limit: 100 Kg
Indications: low to medium impact, K1-K2




1330AJ
Variable Height Adapter ended with Receiver
aluminum
OD Ø 44 MM x ID Ø 30 MM x H 180 MM
product weight: 192 g
weight limit: 100 Kg
includes: set screws

1602AJ
Aluminum Short Pylon integrated with Female Adapter
aluminum
Ø 30 MM x H 200 MM
product weight: 191 g
weight limit: 100 Kg
includes: set screws

1604AJ
Aluminum Long Pylon integrated with Female Adapter
aluminum
Ø 30 MM x H 400 MM
product weight: 270 g
weight limit: 100 Kg
includes: set screws



Pediatric Components

#152329 - 1.png

1701ASJ
Pediatric SACH Foot Adapter
aluminum base, integrated with stainless steel pyramid
L 53 MM x W 30 MM x H 21 MM
product weight: 65 g
weight limit: 50 Kg
includes: mounting bolt

1703AJ
Pediatric Tube Clamp Adapter with Receiver
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 40 MM
product weight: 48 g
weight limit: 50 Kg
includes: set screws, clamp screw

1710ASJ
Pediatric Four Hole Square Base Static Pyramid Adapter
aluminum base, integrated with stainless steel pyramid
L 42 MM x W 42 MM x H 19 MM
product weight: 42 g
weight limit: 50 Kg

1717AJ
Pediatric Four Hole Square Base Static Receiver Adapter
aluminum
L 42 MM x W 42 MM x H 15 MM
product weight: 35 g
weight limit: 50 Kg
includes: set screws



1720.25AJ
Pediatric Double Receiver Ended Adapter - 25 MM
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 25 MM
product weight: 49 g
weight limit: 50 Kg
includes: set screws

1720.32AJ
Pediatric Double Receiver Ended Adapter - 32 MM
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 32 MM
product weight: 46 g
weight limit: 50 Kg
includes: set screws

1720.40AJ
Pediatric Double Receiver Ended Adapter - 40 MM
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 40 MM
product weight: 62 g
weight limit: 50 Kg
includes: set screws




1722BKAJ
Pediatric Four Hole Dish-shaped BK Socket Base (Below-Knee)
aluminum
OD Ø 58 MM x H 14 MM
product weight: 60 g
weight limit: 50 Kg
includes: mounting screws

1722AKAJ
Pediatric Four Hole Dish-shaped AK Socket Base (Above-Knee)
aluminum
OD Ø 68 MM x H 14 MM
product weight: 69 g
weight limit: 50 Kg
includes: mounting screws

1731AJ
Pediatric Height Adjustable Tube Clamp Adapter with Receiver
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 70 MM
product weight: 77 g
weight limit: 50 Kg
includes: set screws, clamps screws

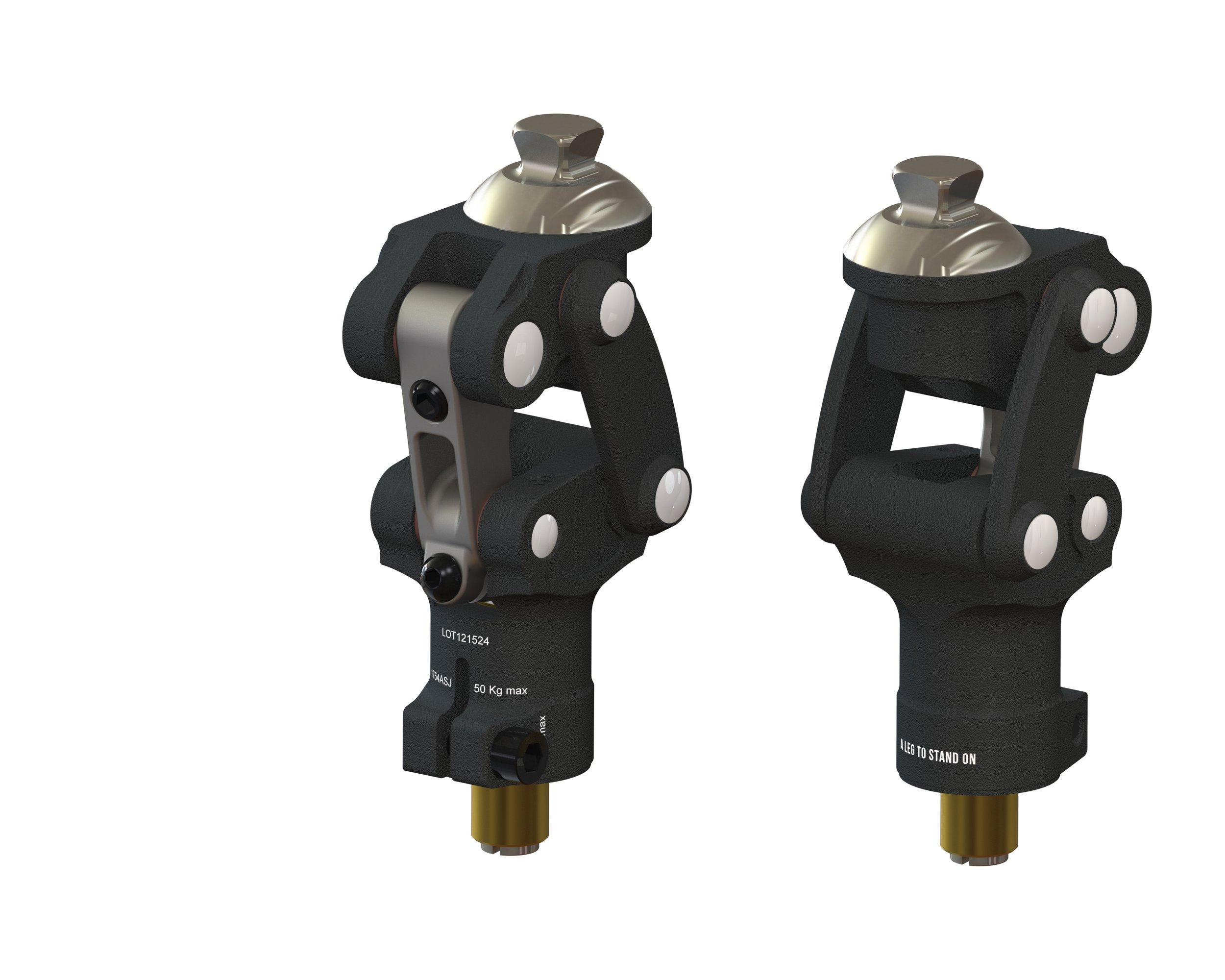

1754ASJ
Pediatric 4-Bar Polycentric Knee Joint
aluminum base, integrated with stainless steel pyramid
L 60 MM x W 50 MM x H 117 MM
product weight: 410 g
weight limit: 50 Kg
Indications: low to medium impact, K1-K2



1730AJ
Pediatric Variable Height Adapter ended with Receiver
aluminum
OD Ø 34 MM x ID Ø 22 MM x H 150 MM
product weight: 96 g
weight limit: 50 Kg
includes: set screws

1625AJ
Pediatric Aluminum Short Pylon integrated with Female Adapter
aluminum
Ø 22 MM x H 200 MM
product weight: 100 g
weight limit: 50 Kg
includes: set screws

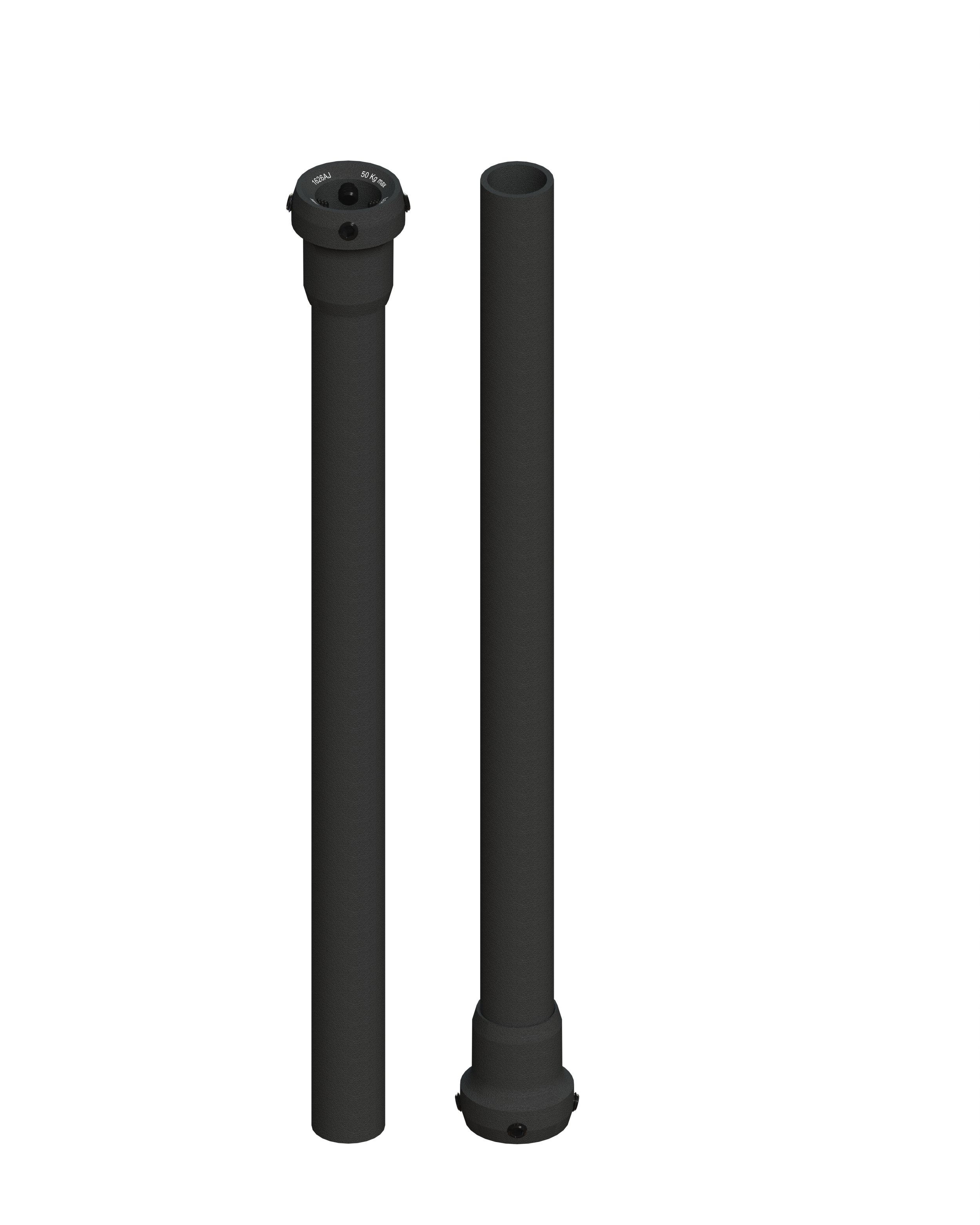

1626AJ
Pediatric Aluminum Long Pylon integrated with Female Adapter
aluminum
Ø 22 MM x H 310 MM
product weight: 148 g
weight limit: 50 Kg
includes: set screws



Accessories



Prosthetic Socks/Belts

ships from USA
(separate from Joshi components)

Knit-Rite Soft Sock
Knit-Rite Super Sock
Knit-Rite Power Belt

Prosthetic Liners

ships from India
(with Joshi components)


Ossur Aspire Locking TT
Ossur Aspire Locking TF

Prosthetic Sleeves

ships from India
(with Joshi components)


Fabric Blend
(nylon, spandex, latex - black)

Prosthetic Feet

ships from India
(with Joshi components)

Ottobock SACH+ 1S101
Ottobock SACH 1K30 (for children)

#152329 - 1.png

Installation User Guides (IUGs)



Adapters

1301.60ASJ // 1701ASJ
Aluminum SACH Foot Adapters

1303AJ // 1703AJ
Aluminum Tube Clamp Adapters

1310ASJ // 1317AJ // 1329ASJ
1332ASJ // 1710ASJ // 1717AJ
Aluminum Four Hole Square Base Adapters

1320.35AJ // 1320.45AJ // 1320.60AJ
1320.75AJ // 1720.25AJ // 1720.32AJ
1720.40AJ
Aluminum Double Receiver Ended Adapters

1322BKAJ // 1322AKAJ
1722BKAJ // 1722AKAJ
Aluminum Four Hole Dish-shaped Socket Bases

1331AJ // 1731AJ
Aluminum Height Adjustable Tube Clamp Adapters

Pylons

1330AJ // 1602AJ // 1604AJ
1730AJ // 1625AJ // 1626AJ
Aluminum Pylons

Shuttle Lock

1318PSJ
Shuttle Lock PSJ
